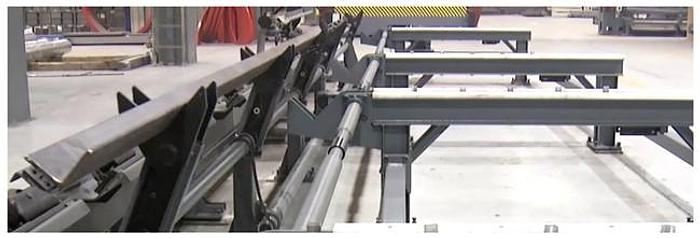

6” x 6” x 5/8” AKYAPAK ANGLE PROCESSING LINE
6” x 6” x 5/8” AKYAPAK ANGLE PROCESSING LINE
$395,500 (USD)
Location:Customer, USA
orCall 1 501-897-1110
Description
12 Months. The warranty expires in case of incorrect utilization and requires using original Akyapak spare parts and consumables. The warranty period starts after installation and commissioning of the equipment.
12-14 weeks
T/T Payment
50% with order
50% before shipment
Installation, commissioning and training requested by a customer is provided by Akyapak for an extra fee.
All required items such as lubricants, oil, air compressor, items for connections of hydraulic, electric and air, test materials to be used during training and all other possible requirements are subject to be provided by the purchaser.
30 days.
All goods remain Akyapak property until completely paid.
Due to technical reasons, all test materials are supplied by purchaser in order to guarantee the results.
Akyapak is not liable for delays and additional costs caused by force majeure. Akyapak reserves the right to make changes on the technical features and machine design when it deems necessary. Given dimensions and weights might differ in delivery.
SPECIFICATIONS AND CONDITION ARE CORRECT TO THE BEST OF OUR KNOWLEDGE AND ARE SUBJECT TO YOUR VERIFICATION AND CORRECTION. THE CONDITION OF THE MACHINE IS AS IT HAS BEEN REPRESENTED TO US. ALL MACHINES ARE SUBJECT TO PRIOR SALE. EVERY MACHINE, UNLESS OTHERWISE SPECIFIED, IS OFFERED SUBJECT TO OUR GUARANTEE THAT IF FOUND TO BE MECHANICALLY UNSATISFACTORY WITHIN 30 DAYS AFTER SHIPMENT, SAME MY BE RETURNED, FREIGHT PREPAID FOR FULL CREDIT OR REPAIRED AT DEALER’S OPTION. ALL MACHINES RETURNED TO US MUST BE IN AS GOOD A CONDITION AS WHEN SHIPPED.
Specifications
Model | AKD 160 Angle Processing Line |
Condition | New |
Number of punching units | 2 Units |
Number of punching tools | 3 Tools per Punching Unit |
Punchine power for each unit | Ton 100 |
Max. punching diameter (59,000 psi) | Inch 1-1/4" |
Max. punching thickness (74,000 psi) | Inch 13/16 |
Max, shearing power | Ton 275 |
Max, material size | inch 6.3 x 6.3 x 13/16 |
Min. material size | inch 1-1/2 x 1-1/2 x 3/16 |
Total power | Ton 94 |

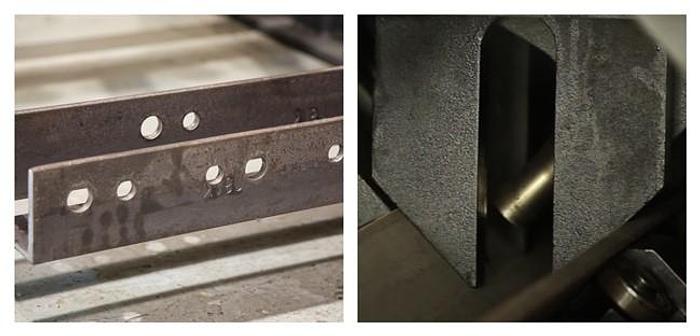

Marking type | Catridge System |
Number of catrdges | 8 per cartidge |
Character diminsions | inch 0.39" x 0.47" x 21 ga. |
