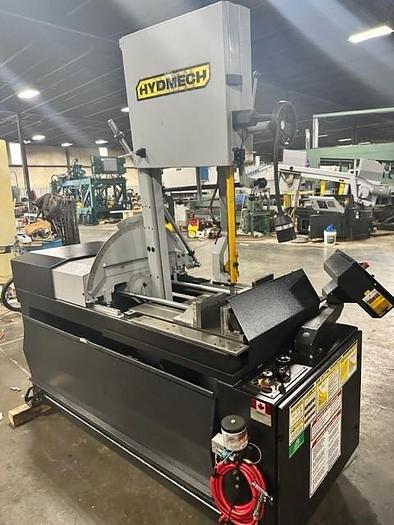

Hydmech Vertical VW-18 semi automatic band saw new in 2019

No longer available

Hydmech Vertical VW-18 semi automatic band saw new in 2019

$35,900 (USD)

Location:Little Rock, AR

Description

Standard Machine Features

·    Adjustable 3° canted head

·    Double articulating, semi-automatic control

·    Two full stroking hydraulic vises

·    Manual precise head positioning from 60° left to 60° right

·    Digital angle display w/ protractor

·    Mechanically adjustable guide arm

·    On-demand hydraulics save energy

·    5 HP VFD. True direct blade drive – no belts/pulleys

·    Hydraulic positive down feed

·    Cast iron band wheels

·    Replaceable blade brush

·    Robust steel base

·    Easy access electrical panel and hydraulics

·    Blade breakage switch

·    Mechanical band tensioning with digital readout

·    Replaceable carbide guide inserts

·    0.5 HP hydraulic pump provides system pressure

·    Safety door interlocks

·    Flood coolant with wash down hose

·    Laser light

·    Work light

·    Variable vise pressure

Equipped with Options

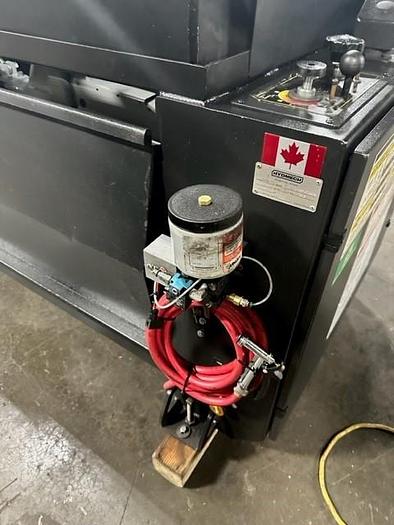

  • Mist Lube system
  • Chip Pan

Specifications

ManufacturerHydMech Group
ModelVW-18
Year2019
ConditionUsed

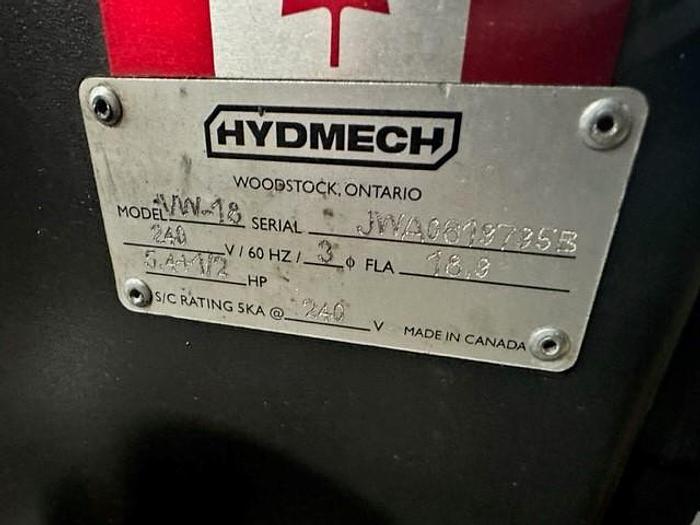

Serial NumberJWA06197353
Stock Number00001
Capacity 90 degrees22" x 18" Rectangular, 17.5" Round
Capacity 45 Degrees15" x 18" Recangular, 12.5" Round
Blade size1.25" x 16'3"
Blade Drive5 hp
Machine voltage240 volt 3 Phase
Blade Speed65-385 sfm
Coolant tank capacity12 gallons
Hydraulic tank capacity4 gallons
Machine weight2,700 lbs
Table height36.5"
Dimensions (w x l x h)36" x 95" x 96"
Mitering capability60 degree
