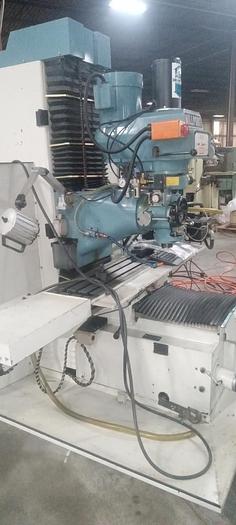

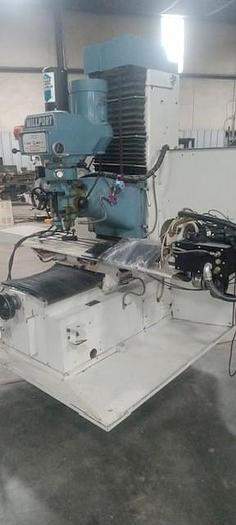

Millport Rhino 3 axis CNC mill with 4th rotary axis
Millport Rhino 3 axis CNC mill with 4th rotary axis
$24,900 (USD)
Location:Little Rock, AR
orCall 1 501-897-1110
Description
3 Axis, Quick Change 30 Taper, DRO,Centroid CNC
Millport Model Rhino 3 Axis CNC Bed Mill
Table Size - 10" x 50"
4 axis Troyke Rotary mounted to the table
Mdl number DL-6-5B Serial Number 5222-7
Centroid M-60A CNC Control PC Based
In Manual Mode Control Acts as 3-Axis DRO
Conversational, M & G Code
RS-232 Port
Handwheels on both X & Y Axes
Rigid Ram
Pneumatically Actuated Power Draw Bar
Hardened & Ground Ways
Bijur Spraymist Coolant System
Flood Coolant System w/Pump & Tank located in Machine Base
Specifications
| Manufacturer | Millport |
| Model | Rhino 3 axis CNC mill with 4th rotary axis |
| Condition | Used |
| Stock Number | 00009 |
| Table Size | 10" x 50" |
| Table Travel | x 29.75" y= 14.75" |
| Knee or spindle head Travel | z = 15" |
| Spindle Travel | Spindle quill = 5" |
| Spindle motor HP | 3 |
| Spindle Speeds | 70 - 4200 RPM |
| Spindle Taper | 30 |
