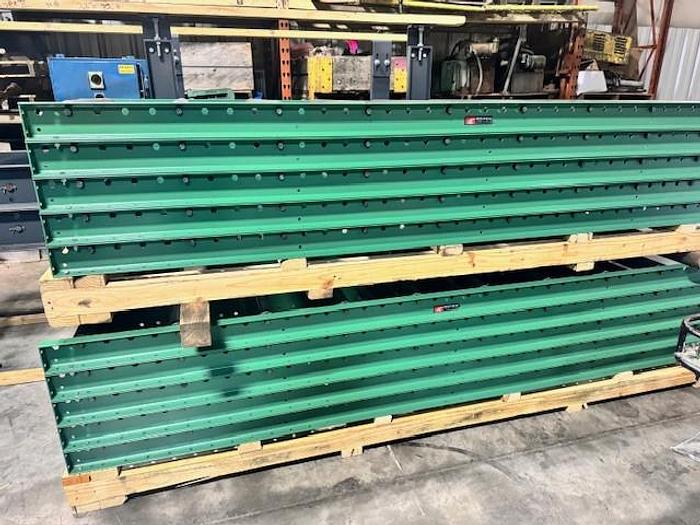

Roach Conveyors 31" x 10', 12" centers with 3 supports

31" x 10' Roller Conveyor on 12" Centers

ROLLERS: 2-9/16″ x 7 ga. steel tubing, model 297S, with straight ends, reamed to provide smooth bearing seats.

FRAMES: 4″ at 5.4 lbs. structural steel painted channel.

ROLLER CAPACITY: 540 lbs. per roller.

AXLES: 11/16″ hex shaft, spring loaded.

BEARINGS: Removable type, heavy duty ball bearings, zinc plated, grease packed.

COUPLINGS: Butt type.

FRAME CAPACITY: 3750 lbs. maximum distributed live load per 10′ section with supports at 10′ centers ; 5400 lbs. at 5′ centers

Includes 3 Support per 10' conveyor 28.5" Tall adjustable to 40.4" Tall

SPECIFCATION:

ROLLERS: 2-9/16″ x 7 ga. steel tubing, model 297S, with straight ends, reamed to provide smooth bearing seats.

FRAMES: 4″ at 5.4 lbs. structural steel painted channel.

ROLLER CAPACITY: 540 lbs. per roller.

AXLES: 11/16″ hex shaft, spring loaded.

BEARINGS: Removable type, heavy duty ball bearings, zinc plated, grease packed.

COUPLINGS: Butt type.

FRAME CAPACITY: 3750 lbs. maximum distributed live load per 10′ section with supports at 10′ centers ; 5400 lbs. at 5′ centers
