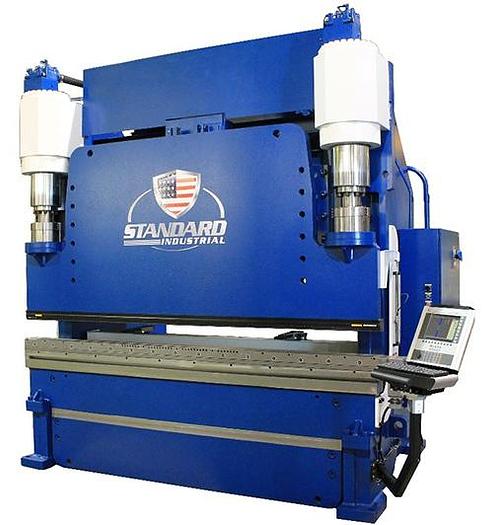

Standard EV Series CNC Press Brake 90 ton x 6'

PRECISION

Our model EV press brakes are available from 90 to 1,100 tons up to 24’ with tandem configurations available. Our Y1-Y2, fully proportional hydraulic system provides +,- .0004” of precision ram to bed level accuracy across the length of the machine. All made in in our factory in Clarksdale, MS U.S.A.

840 2D GRAPHICAL CNC CONTROL

This state of the art control includes remote service/support and diagnostics via the ethernet connection, Windows 10 operating system, a 15” color touchscreen with pendant mount, a full 2 dimensional graphics package, 30,000 hard drive programs, unlimited off-line programmability via USB or ethernet, 2D collision detection and best bending sequences identification plus much more. The 840 controls up to 11 CNC axis plus CNC crowning (optional).

• Remote support/service and diagnostics via ethernet
• Windows 10 operating system
• Fully 2D Graphical control w/touchscreen
• 15” color screen on pendant
• Crowning correction in degrees (crowning sold separately)
• 2D identification of best bending sequences
• 2D graphical Offline software for desktop programming
• 2D collision detection
• Unlimited job storage via USB & Ethernet
• X, Y, R, Z1-Z2, X-Prime, X1-X2, R1-R2 programmability
• Readily accepts most tooling files
• 30,000 hard drive programs
• Programmable delay & retract at pinch point
• Inch/mm conversion
• Auto return of ram included
• Low speed retract included
• Dwell/decompression included
• 2 days onsite training at customer's facility (cont. U.S.)

Like all components on our machinery, this control is non-proprietary and readily available everywhere in the world.

OPTIONAL Controls

850W 2D/3D Graphical Control UPGRADE

• Fully 2D/3D Graphical touchscreen control with graphical work-pieces and tooling
• Identification of best bending sequences
• Collision detection Graphical Offline software for desktop programming + unlimited job storage via USB ports + Ethernet
• 19” TFT color screen on a pendant
• Programmable tonnage
• X, Y, R, Z1-Z2, X-Prime, X1-X2, R1-R2 programmability
• Controls CNC crowning
• Embedded Windows 10 Operating System
• 20 gigabytes hard drive memory
• Laser system compatible
• Programmable delay & retract at pinch point
• Inch/mm conversion
• 3D On screen part viewing
• Capable of full 3D rendering capability with Autopol/Radan software

RADAN 3D MODELING SOFTWARE

(For more information go to www.radan.com)

State of the art 3D programming software available optionally with the 840 control (download programs only) and 860 control (full download to CNC). This software allows the import of all range of drawing formats and automatic unfolding of your parts. It is available for Solidworks, Autocad and many other software suites.

INCLUDES:

• Automatic bend sequencing
• Automated tool selection
• Tool setup optimization
• Automatic finger positioning
• Support for lifting aids and measurement systems

 PRECISION SERVO GAUGING SYSTEMS

All model EV precision press brakes come standard with our heavy duty, 29” travel, precision servo gauging system with manual R/manual Z.

The EV press brakes are available optionally with R, Z1-Z2 and X-Prime servo gauging systems. As well as our full 6 axis gauging system that includes Z1-Z2 + X1-X2 + R1-R2. Available in 29” to 39” travel (special lengths available). All covered by our 5 year parts warranty.

2-4 Axis X+ R (2 axis) or X + R + Z1-Z2 (4 axis)

X = Fingers in/out

R = Finger up/down

Z1-Z2 = Fingers Independently Left/right

5 Axis X + R + Z1-Z2 + X-Prime

X-Prime = Allows 1 finger +,- 3” of center for tapered bends

6 Axis Z1-Z2 + X1-X2 + R1-R2

6 axis of full articulation

Z1-Z2 = Fingers independently left to right

X1-X2 = Fingers independently front to back

R1-R2 = Fingers independently up and down

LIGHT CURTAIN WITH FOOTSWITCH

Floating blank key-switch included, some programmability. Side barriers included to completely protect throat area of machine. 1 year warranty.

LASER GUARDING SYSTEM

Wraps lasers around punch to allow operator closer to pinch-point and still be O.S.H.A. approved. 1 year warranty.

COMPLIANCE OPTIONS INCLUDING UL LISTING, CSA, ZED

ADDITIONAL FOOTSWITCH AND PEDESTAL CONTROL FOR 2nd OPERATOR

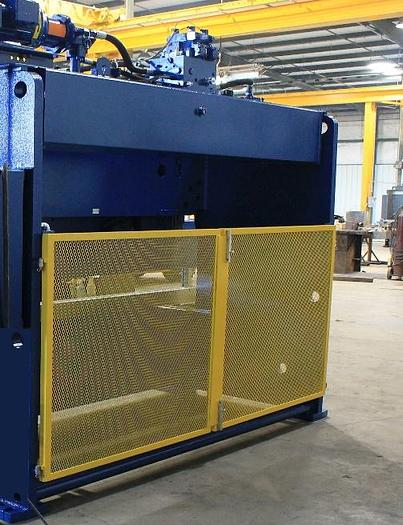

SAFETY GUARDING FOR REAR OF PRESS BRAKE

Comes with swinging gates and interlocking system for shut down while open. Custom guarding systems available.

CNC CROWNING

For the most precision requirements, CNC crowning allows the operator to program the desired deflection for each job reducing set up time.

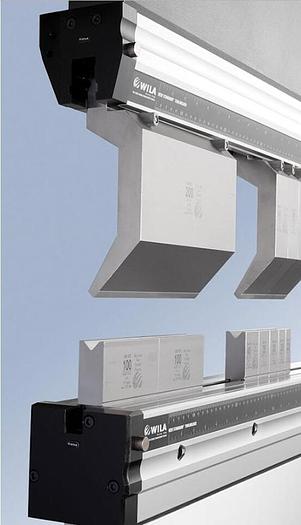

RAM AND BED CLAMPING SYSTEMS

Quick-change, powered clamping systems for upper and lower tooling providing you the quickest set up times possible. Perfect for American or New Standard style of tooling. Lower clamping available with or without crowning.

AMERICAN AND NEW STANDARD PRECISION TOOLING

Precision ground to +,- .0004” and hardened at wear points. Segmented tooling is the answer for quality and fastest set up times.

CNC SHEET ASSISTS

When operator safety and precision part handling are a priority, our CNC sheet assists are the solution. CNC controlled for precision part following and available for any level of production. (800 series controls required)

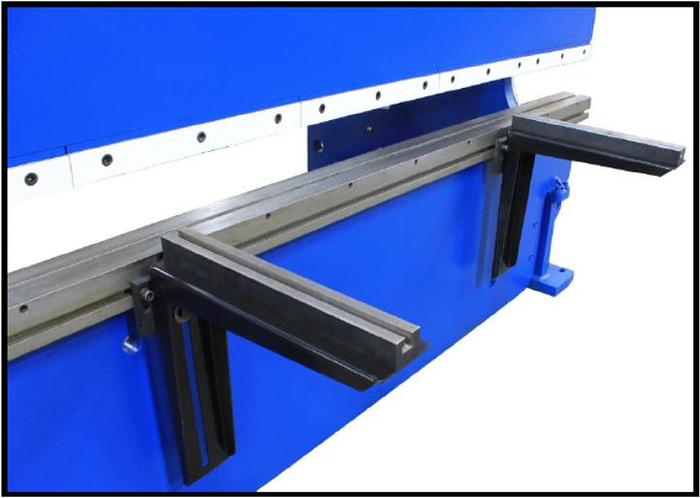

QUICK RELEASE LINEAR WORK SUPPORTS

Quick-change, quick-disconnect style support arms with heavy duty, smooth transition roller guides for easy arm movement. Multiple adjustment points on arms for super precision placement.

EXTENDED WARRANTY

This optional warranty extends the standard 5 year parts warranty by 2 years. Includes:

• 7 year parts in lieu of standard 5 year parts warranty
• 2 year PLC and CNC warranty
• 5 year onsite limited labor warranty
