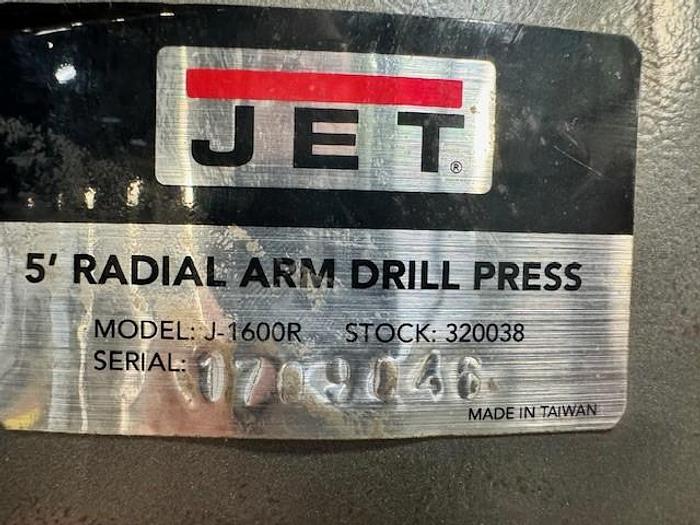

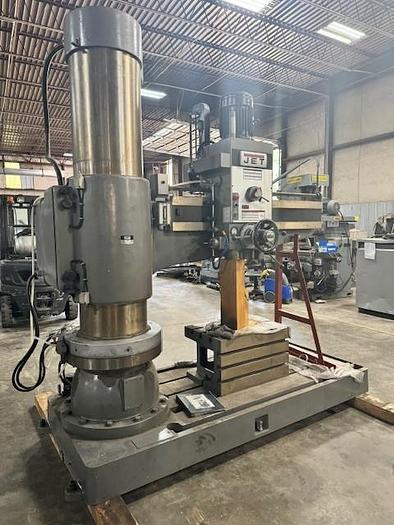

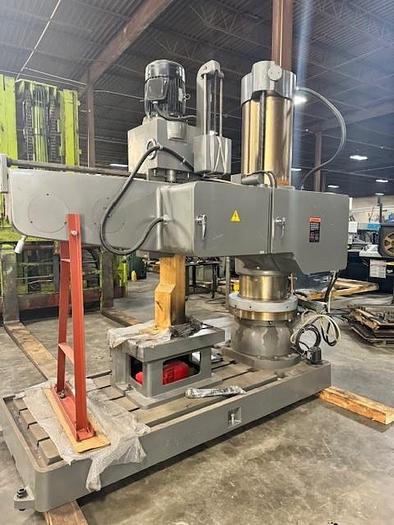

Jet J-1600R

This Machine has low to no hours on it. comparable machines sell new for $55,000.00 To $64,000.00

The apex of heavy-duty JET Radial Arm Drill Presses are built to create precision holes in huge pieces and enhance productivity in even the busiest commercial shops. Operation is enhanced with power spindle feed and coolant systems, safety features and ergonomic design. JET Radial Arm Drill Presses are built to deliver under even the most demanding drilling specifications, and hold material fast for superior performance

• Features:The power train gears and spline shaft are made of the finest quality, heat treated and ground nickel-chrome steel, giving extra strength and smoothness to high torque loads
• The spindle is made of the finest case hardened steel for extra strength and wear
• The spindle is supported by double row taper roller and thrust ball bearings at the nose, with thrust and radial axis bearings at the top
• The spindle is built to withstand exceptionally heavy drilling and boring loads and to insure maximum accuracy
• Push button controls are all reduced to 110V
• Electrical circuits are located in the built-in control box at the rear of the arm- this keeps the controls dust and humidity free while making them easily accessible for maintenance
• Entire frame is made of Meehanite and high tensile strength cast iron to handle the heaviest of jobs
• Arm raising safety device prevents arm from dropping
• Counter balanced mechanism for spindle return
• 12 speeds/3 feed rates make exotic materials easier to drill, bore and tap
• Centralized control center
• Automatic tool ejector
• Hydraulic head and column clamping
• Built in work light
• Coolant pump
• Tool kit
• Box table

Head and Spindle:

Push button controls .................................................................................................................................. 110V

Spindle motor (model J-1600R) ......................................................... TEFC Induction, 7.5 HP (5.5 kW), 3 PH,

Control circuits ........................................................................................................................................... 115V

Spindle taper .............................................................................................................................................. MT-5

Spindle speeds.......................................................................................... twelve speeds, within 40-1920 RPM

Quill (spindle) travel ............................................................................................................. 14-9/16" (370 mm)

Quill (spindle) travel with powerfeed engaged ............................................................................. 13" (330 mm)

Spindle travel along arm, total.............................................................................................. 44-7/8" (1140 mm)

Feed rates (distance per revolution) .......................................................................... six at 0.003 - 0.038 in/rev

Base surface to spindle, maximum (no tooling) ......................................................................... 63" (1600 mm)

Base surface to spindle, minimum (no tooling) ............................................................................ 15" (380 mm)

Column to spindle center distance, maximum ..................................................................... 62-1/4" (1580 mm)

Column to spindle center distance, minimum ......................................................................... 13-3/8" (334mm)

Noise emission (approx. 3-1/4 ft./1m from spindle head) * ..................... 82 dB at 1500 rpm; 79 dB at 88 RPM

Arm and Column:

Column diameter .......................................................................................................................... 17" (432 mm)

Arm vertical travel on column ............................................................................................ 33-15/32". (850 mm)

Arm elevating motor .................................................... TEFC, 2 HP (1.5 kW), 3 PH, 230/460V, 3.2/1.6A, 60Hz

Clamping motor .......................................................... TEFC, 1 HP (0.75kW), 3 PH, 230/460V, 3.2/1.6A, 60Hz

Base and Table:

Box table dimensions ..........................................................27-1/2"L x 19-3/4"W x 16"H (700 x 500 x 415 mm)

T-slots in Table (6) ............................................................ 1-1/2"W x 3/4" D, 7/8" W opening (38 x 19, 22 mm

)

Base dimensions ..............................................................103-1/4"L x 40-1/4"W x 8"H (2623 x 1022 x 203mm)

T-slots in Base (3) .............................................................. 1-1/2"W x 3/4 D", 7/8"W opening (38 x 19, 22 mm)

Additional specifications:

Coolant pump motor.................................................. TEFC, 1/8 HP (0.1kW), 3 PH, 220/440V, 0.2/0.1A, 60Hz

Machine height (floor to motor at maximum elevation) ............................................................. 125" (3175mm)

Shipping Dimensions .............................................................. 110"L x 57"W x 115"H(2794 x 1448 x 2921mm)

Net weight ........................................................................................................................... 11,000 lb / 4990 kg

Shipping weight ................................................................................................................... 11,240 lb / 5098 kg
