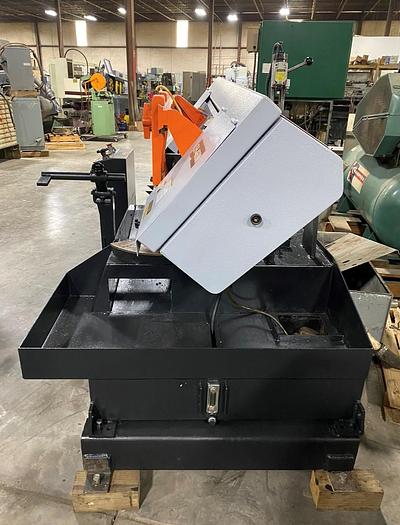

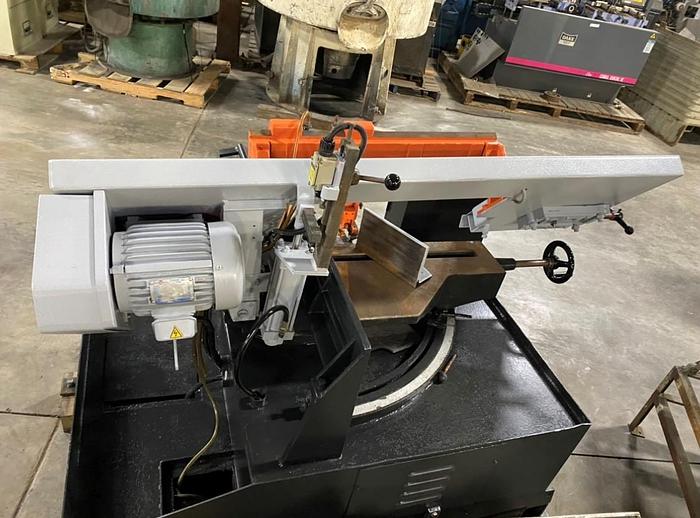

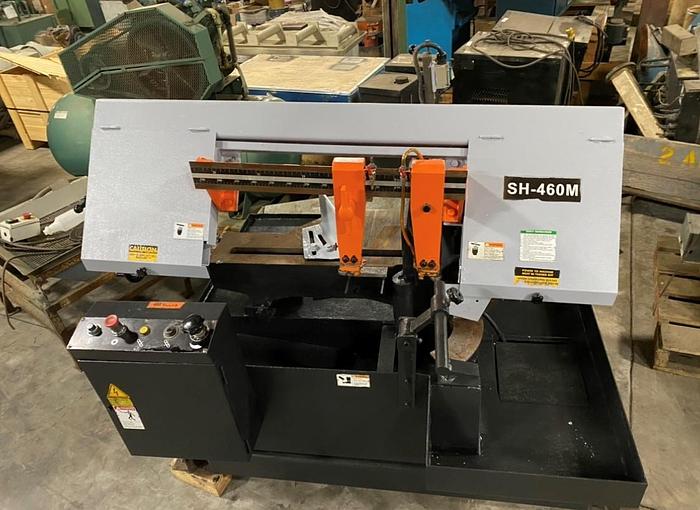

Cosen SH-460M

Features

• Hydraulic cylinder plus precision ground hinge support
• Heavy-duty cast iron swivel center features straight cutting and miter cuts from 0 degrees to 30
• Adjustable flood coolant system
• Carbide blade guides and bearings provides additional blade support
• Rigid cast-iron guide arms
• Cast-iron vise
• Blade cleaning chip brush
• Adjustable down feed and pressure control
• Saw head automatically raises after each cut

Specifications

• Capacity:0° Angle:Round: 10”
• Rectangular: 9” x 18.1”
• -45° Angle:Round: 9”
• Rectangular: 9” x 9”
• -60° Angle:Round: 4.3”
• Rectangular: 9” x 4.3”
• Blade Speed: 95, 150, 213, 321 FPM
• Blade Size (LxWxT): 11' 6" x 1" x .035"
• Blade Motor: 2 HP
• Coolant Motor: 1/8 HP
• Workbed Height: 25.4"
• Weight: 1,450 lbs
• Floorspace (LxWxH): 55" x 74.8" x 66.9"
