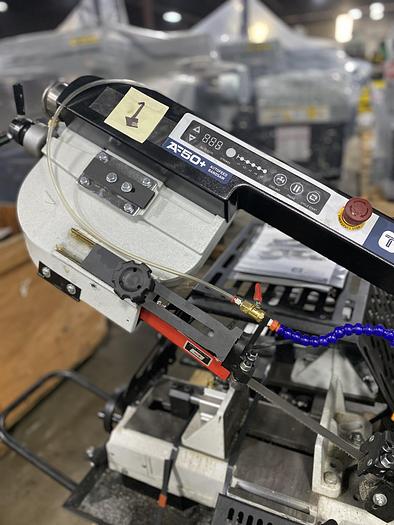

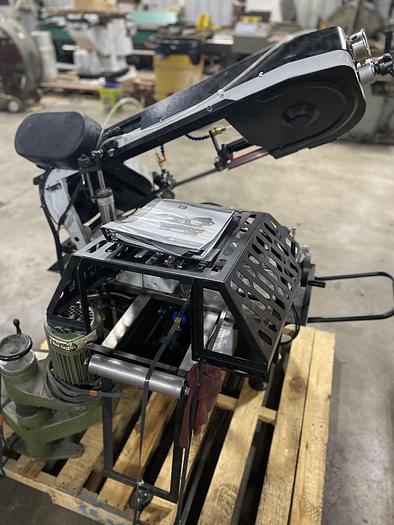

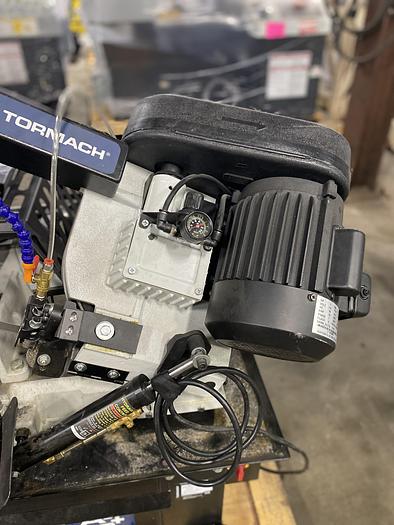

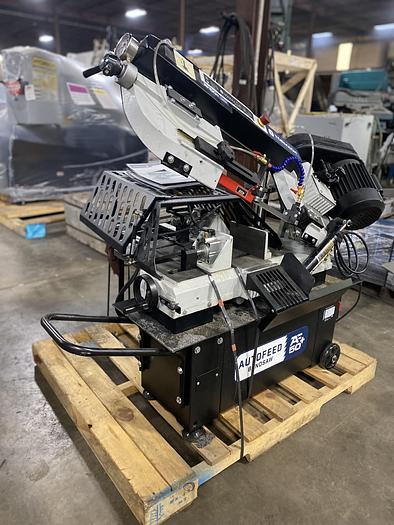

Tormach Autofeed Bandsaw

Use the AF50+ Autofeed Bandsaw to easily cut multiple parts with automatic workpiece positioning. The bandsaw’s part length consistency and hands-free operation make this an ideal companion to your CNC machine.

Features:

• Pneumatic clamping system with adjustable soft squeeze safely holds material from thin-walled tubing to 7 in. steel round bars
• Hydraulic feed control helps keep your blade cutting straight
• Four blade speeds accommodate a range of material and blade styles
• Integrated coolant system keeps your blade and workpiece cool and lubricated
• Built-in wheels and handle allow for movement around your shop
• Blade tension indicator for fast and easy tension adjustment after blade changes
• Built-in display for counting down parts and troubleshooting messages

• Power and Air:
• Primary Power: 115 Vac, 50/60 Hz, single-phase
• Required Circuit Amperage: 15 A
• Compressed Air Source: 90 psi to 120 psi (620 kPa to 827 kPa)
• Space:
• NOTE: For detailed space planning information, refer to the operator’s manual.
• Minimum Depth: 36 in. (0.91 m) plus the length of stock
• Minimum Height: 67 in. (1.71 m)
• Minimum Width: 60 in. (1.53 m)

Cut Lengths 0.157 in. to 50 in. (4 mm to 1270 mm)

Maximum Length per Stroke 10 in. (254 mm)

Maximum Strokes per Part 5

Maximum Parts per Program 999

MAXIMUM CAPACITY Rectangular Stock 6 in. tall × 8 in. wide (152 mm tall × 203 mm wide)

Round Stock 7 in. (178 mm) diameter

BLADE Motor Power 1 hp (3/4 kW)

Blade Speeds 60 Hz: 90, 134, 195, 255 ft/min (27, 41, 59, 78 m/min) 50 Hz: 70, 110, 160, 210 ft/min (22, 34, 49, 64 m/min)

Blade Length 93 in. (2362 mm)

Blade Width 0.75 in. (19 mm) Blade Thickness 0.035 in. (0.9 mm)
