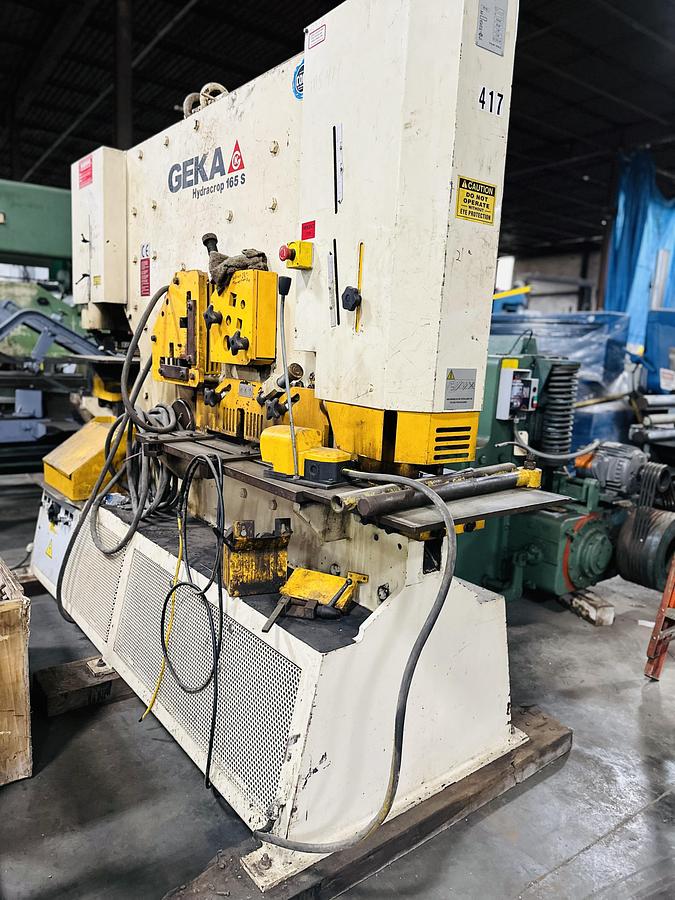

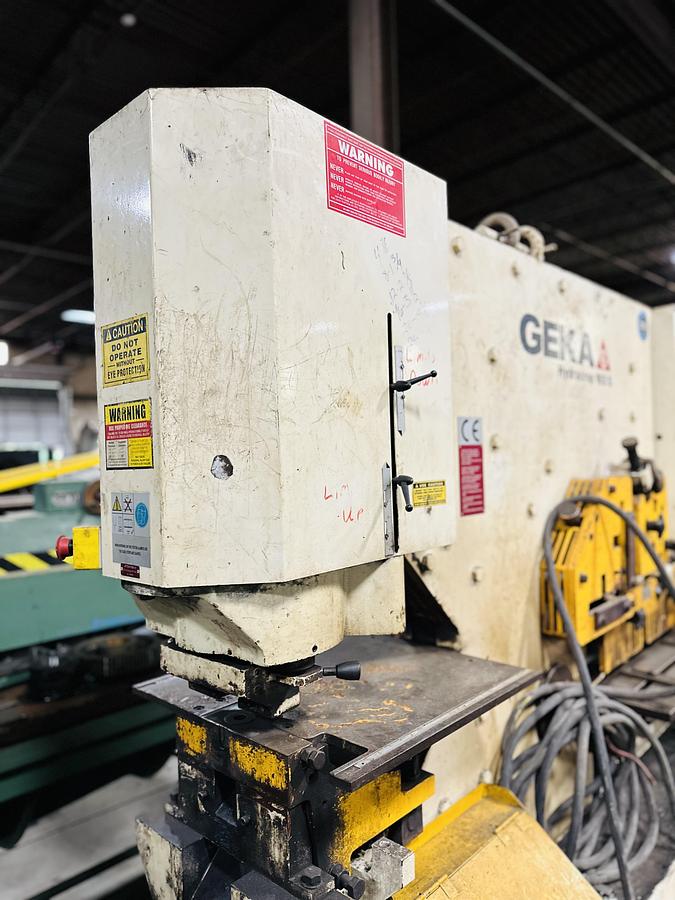

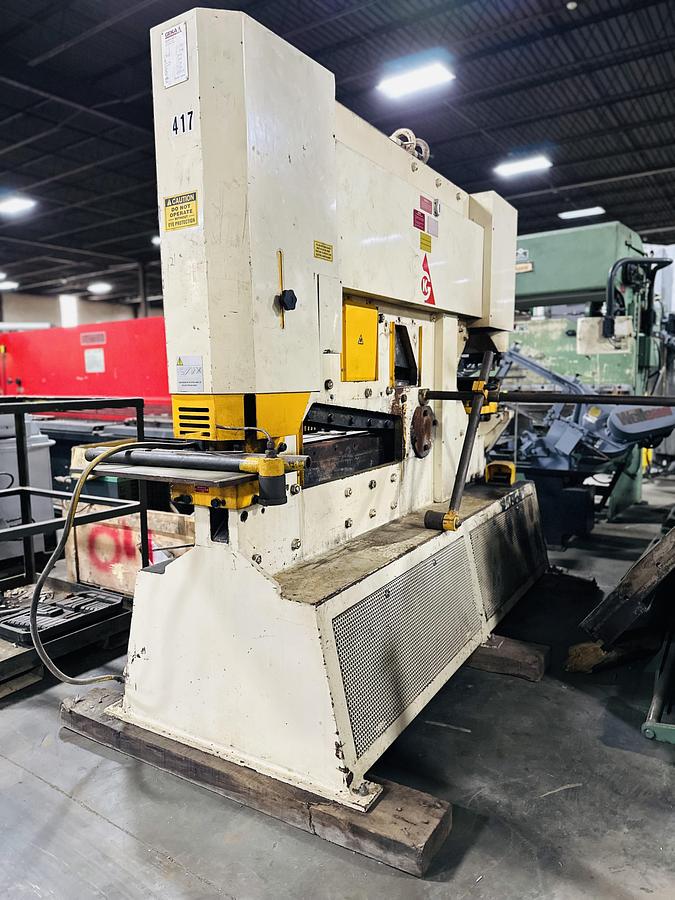

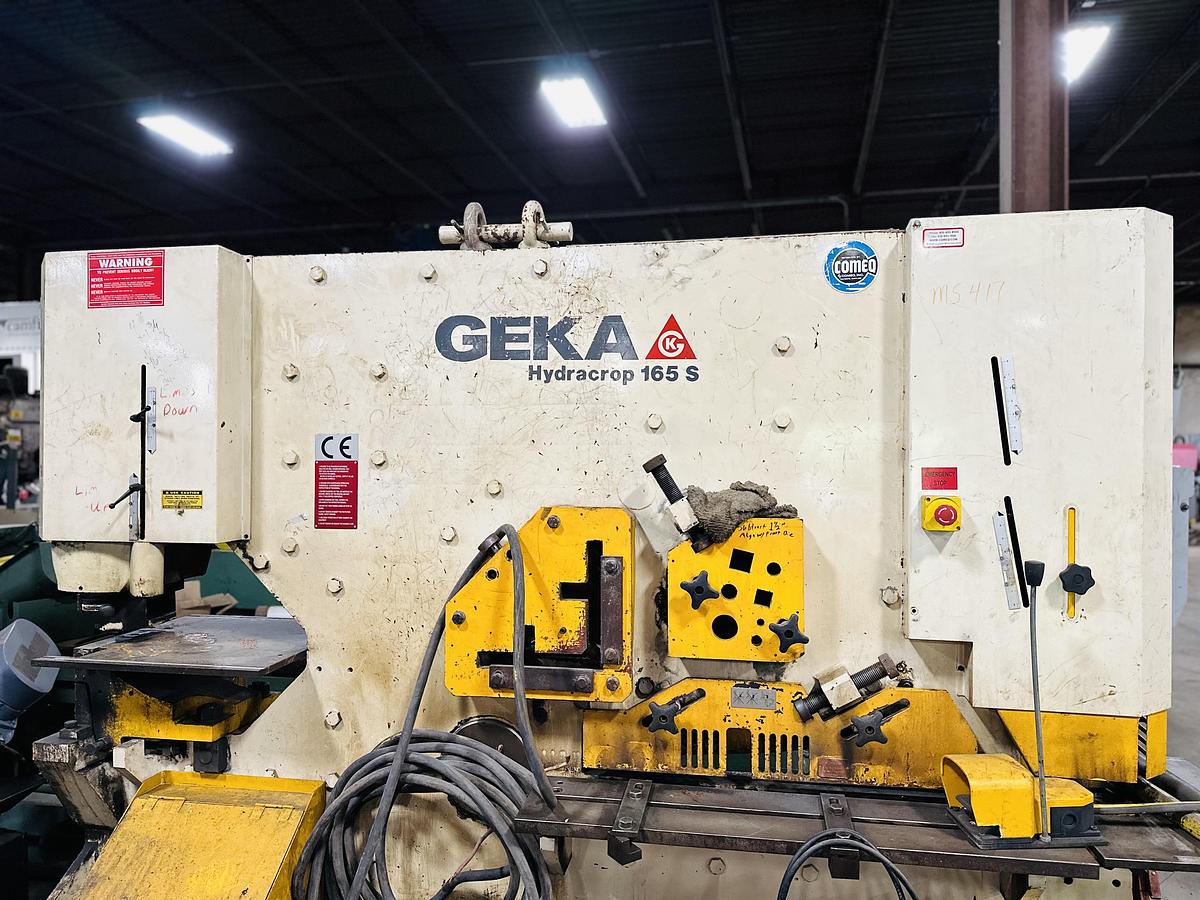

2012 GEKA Iron Worker 185 ton punch 300 ton Shear
2012 GEKA Iron Worker 185 ton punch 300 ton Shear
$49,500 (USD)
Location:Little Rock, AR
orCall 1 501-897-1110
Description
Rectangular Coper Notcher
Magnetic Work Light
Die Holder
Deeper Throat For Larger Plate & Sheet Metal Applications
Precision Notching & Punching Tables
Flat Bar Shearing Table
Powerful Hydraulic Unit
Flat Bar Blades
2 Simultaneous Work Stations
5 Work Stations
Machine Driven By 2 Cylinders
(2) Foot Pedals
40" Calibrated Electric Length Gauge
Specifications
| Manufacturer | GEKA |
| Model | Hydracrop 165 S |
| Year | 2012 |
| Condition | Used |

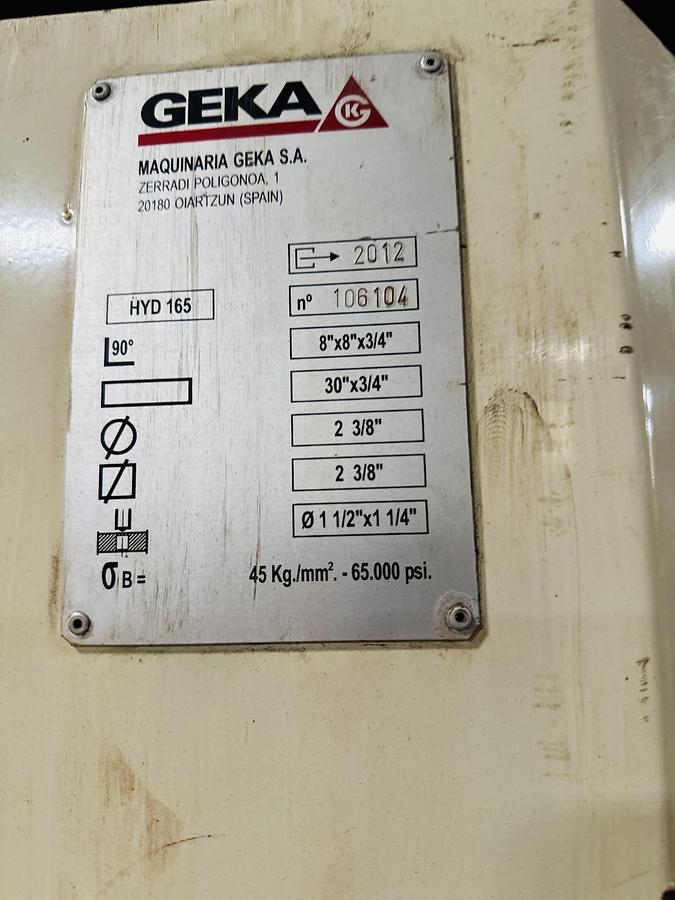

| Serial Number | 106104 |
| Stock Number | LEXJH1224 |
| Punching capacity | 185 Tons, 1-1/2" thru 1-1/4" with standard tooling 1.5" thru 1.5 with special die block and holder |
| Depth of Throat | 24" |
| Punch Travel | 4" |
| Punch Work Height | 43-3/4" |
| Coping/notching | 5/8" Capacity 4" x 2-1/4" |
| Angle Shear | 8" x 8" x 3/4" |
| Flat Shear | 30" x 3/4", 16" x 1-1/8, Blade Length 30-1/8" |
| Flat Shear work Height | 35.5" |
