2004 Krras RAS 3013 1/2" X 10 Shear

2004 Krras RAS 3013 1/2" X 10 Shear

$49,500 (USD)

Location:Little Rock, AR

Description

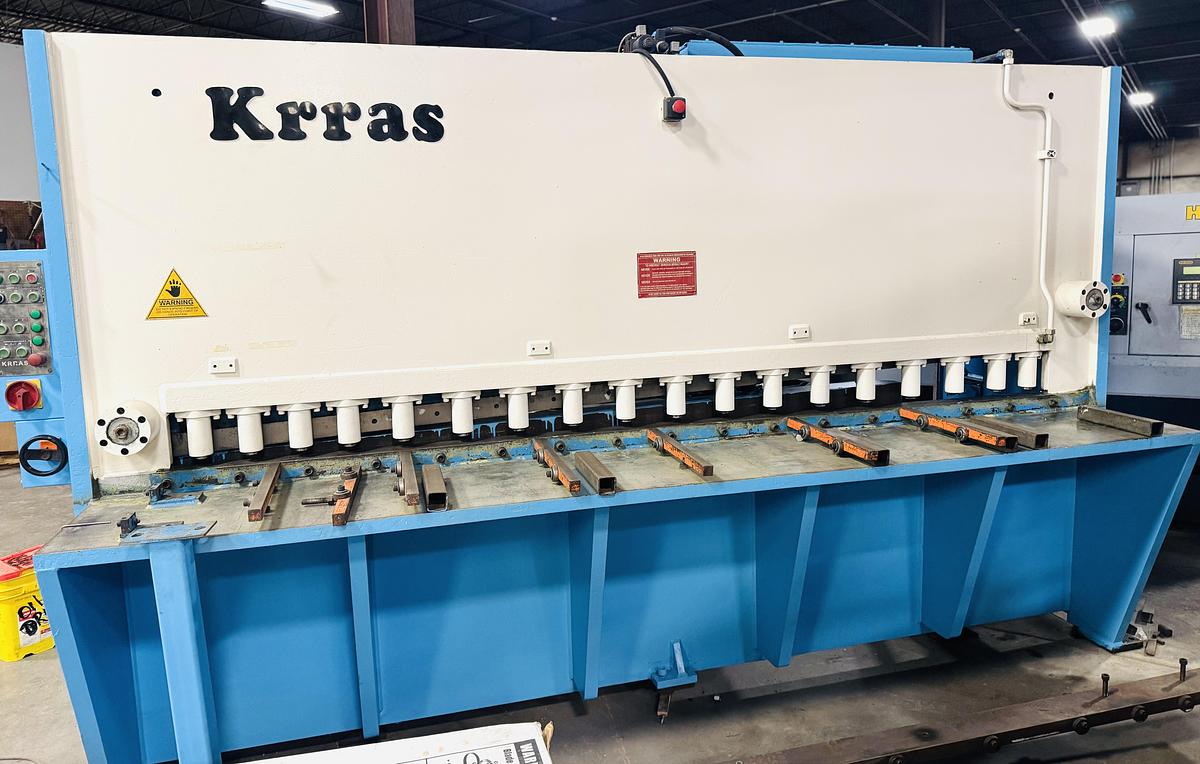

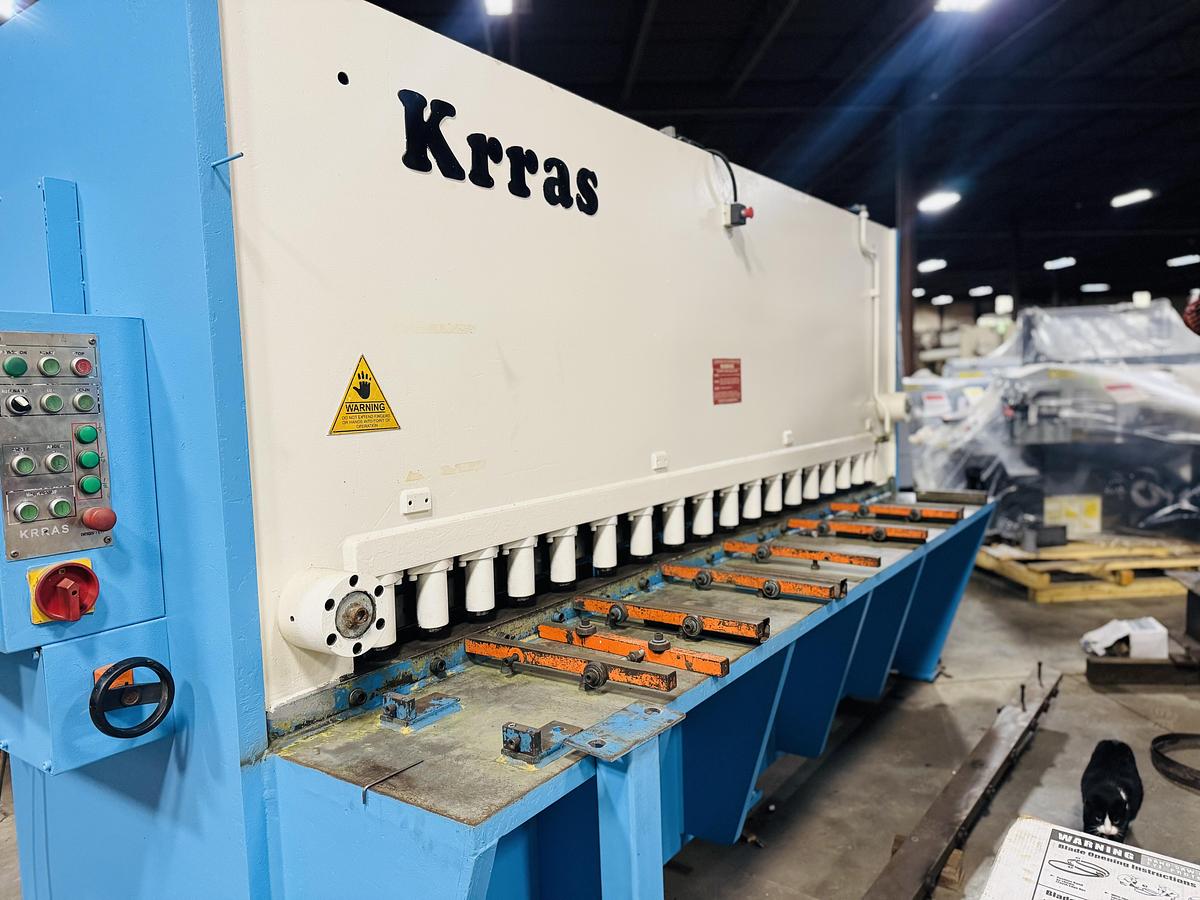

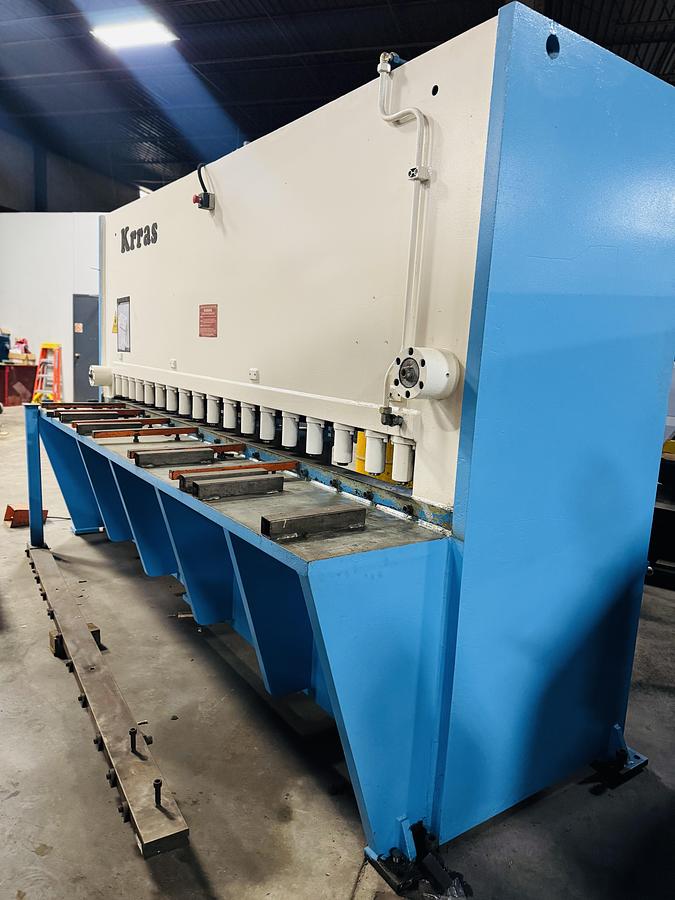

This 120" wide hydraulic shear can handle up to a 1/2" mild steel. This heavy duty machine will trim 10 foot sheets with ease!


Standard Accessories:


Variable rake angle adjustment

Rapid blade gap adjustment

4 edge high carbon high chrome D2 quality shears blades

Front operated motorized backgauge range to 39"

Shadow line lighting & well designed finger guard for clear view of cutting line

Safety foot switch operation.

Top blades will automatically return to top position when foot is removed from foot pedal

39" side squaring arm with disappearing stops

Independent clamping of individual hold downs

Specifications

ManufacturerKrras
ModelRAS 3013 1/2" X 10 Shear
Year2004
ConditionUsed
Serial Number1103
Stock Number11142024KRASSJH
Capacity10' X .50 Mild 1/4" x 10' Stainless
Blade length122"
Strokes per Minute8-10
Table height34.5"
NC Back Gauge39" Powered
Front Support Arm24"
Blade Rake1-3 Degree
Motor HP20 HP
Shipping weight20,850 LBS
Dimensions (w x l x h)144″W x 78″W x97″H
