Hydmech M20A

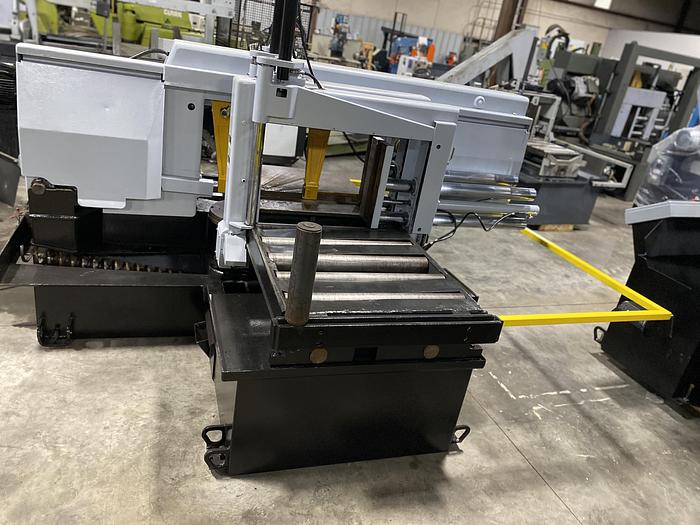

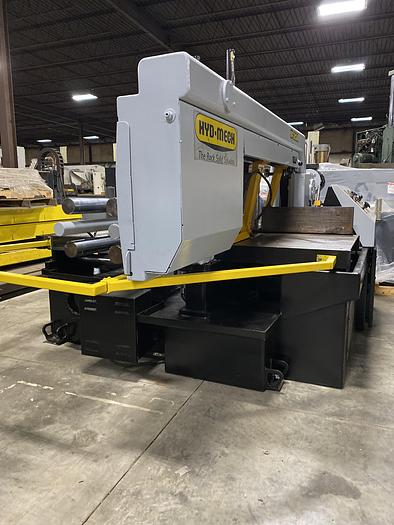

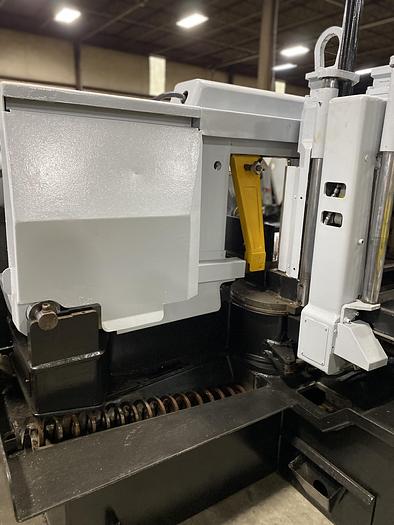

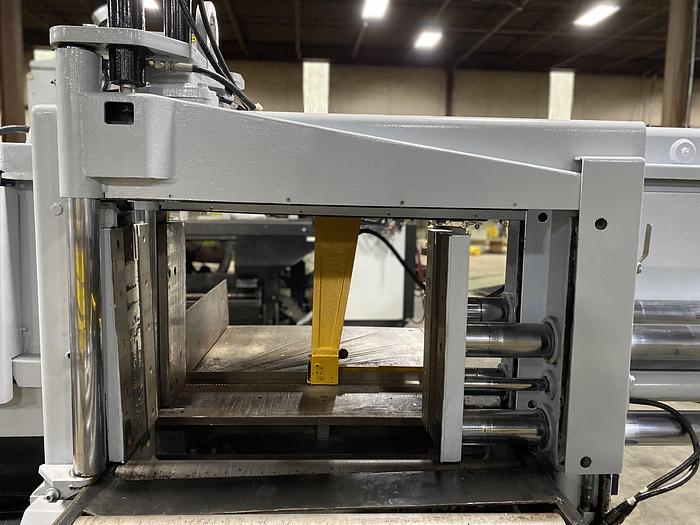

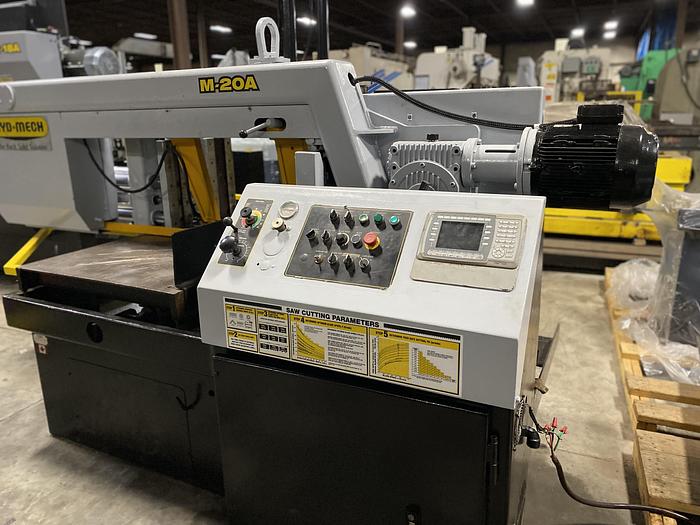

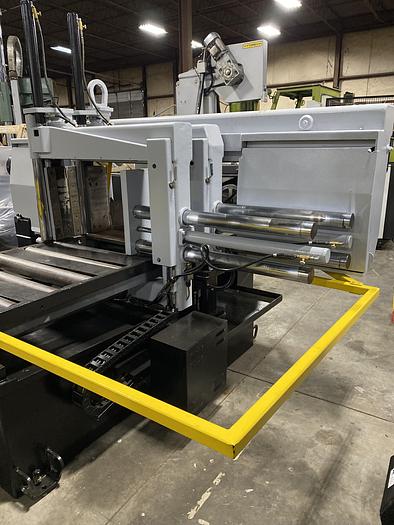

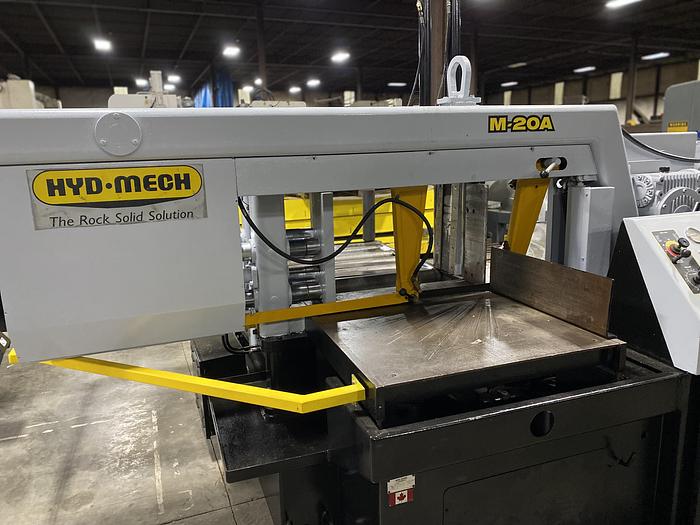

Used 2004 Hydmech M20A with bundling.

DIMENSIONS

 IMPERIAL METRIC

Capacity round 20” dia 500mm dia

 rectangular 20” x 30” 500 x 750mm

 @ 45 deg 20” round, 18x20” rec. 400mm round, 350x400mm rec.

 @ 30 deg 12” round, 12x20” rec. 300mm round, 300x400mm rec.

Length Control programmable up to 99 jobs, with 5 in queue

Blade: length 20’ 6” (23’2” w/ extended head) 6250mm (7061mm)

width 1 1/2” 38mm

thicknes .050” 1.25mm

Blade: Speed 60-350 SFM 18-107 m/min

Blade: Tension (hydraulic) 30,000 psi 207000 kPa

Blade: Guides: carbides (coolant lubricated)

Blade: Wheel Diameter 22” diameter 560 mm

Motors: blade drive 10HP 7.5kW

 hydraulic 3HP 2.2kW

Pumps: hydraulic pump 6 1/2 gpm 24.5 L/min

(pressure compensated)

coolant pump 3 1/2 gpm (150W) 13.2 L/min (150W)

Hydraulic Tank 11 US gallons 42 L

Hydraulic System Pressure 950 psi 6544kPa

Hydraulic Blade Tension Pressure 950 psi 6544kPa

Vise Control: hydraulic

Shuttle Stroke (single stroke

multi shuttle capability) 0-33” 0-838mm

Table Height 32” 812mm

Machine Weight 7700 lbs. 3500 kg

Maximum Workload 8000 lbs. 3650 kg

Overall Dimensions 140” W x 90” L x 66” H 35560 W x 2286 L x 1676mm H

Noise Level 75-95 db 75-95 db

M-20 SPECIFICATIONS

8.2 8.3

M-16 SPECIFICATIONS

 IMPERIAL METRIC

Capacity Round 16” 400mm

 Rectangular 16” x 25” 400 x 625mm

 @ 45° Round 16” 400mm

 @ 45°Rectangular 14x16” 350x400mm

 @ 30° Round 9x16” 225x400mm

 @ 30° Rectangular 11” rec. 275mm

Length Control programmable up to 99 jobs, with 5 in queue.

Blade: Length 18’ 6” 5640mm

Width 1 1/4” 32mm

Thickness .042” 1mm

Speed 60-325 SFM 18-99 SMM

Tension (hydraulic) 30,000 psi 207000 kPa

Guides carbides (water soluable coolant lubricated)

Wheel Diameter 19” diameter 480 mm

Motors:

Blade Drive 7.5HP 5.6kW

Hydraulic 3HP 2.2kW

Pumps:

Hydraulic pump 6 1/2 gpm 24.5 L/min

(pressure compensated)

Coolant pump 3 1/2 gpm (150W) 13.2 L/min (150W)

Hydraulic Tank 11 US gallons 42 L

Hydraulic System Pressure 950 psi 6544kPa

Hydraulic Blade Tension Pressure 650 psi 4477kPa

Vise Control hydraulic

Shuttle Stroke (single stroke 0-33” 0-838mm

multi shuttle capability)

Table Height 32” 812mm

Machine Weight 7400 lbs. 3356 kg

Maximum Workload 8000 lbs. 3650 kg

Overall Dimensions 130” W x 90” L x 66” H 3300mm W x 2286mm L x 1676mm H

Noise Level 75-95 db 75-95 db
